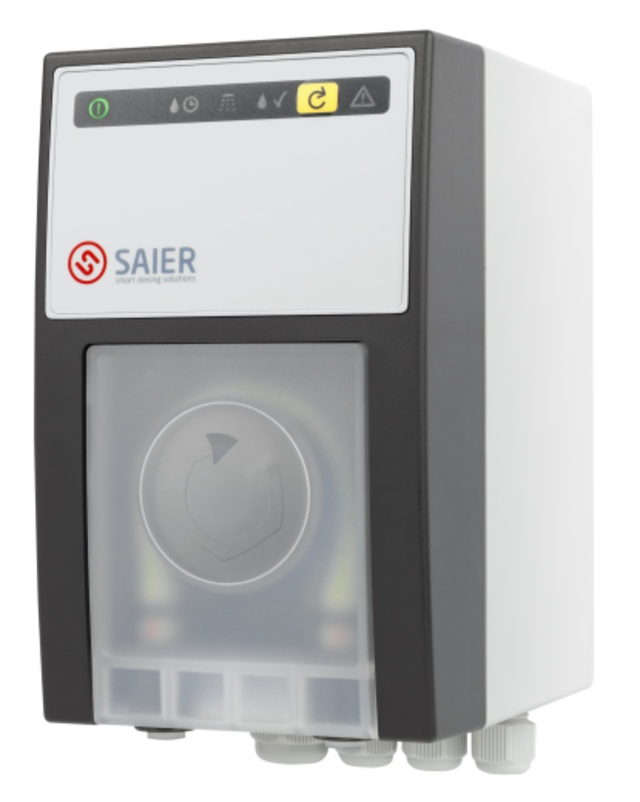

Concept 2105-3
Extremely flexible and the professional all-rounder: the 2105-3 dosing hose pump is the universal pump of choice with a wide range of applications. The 2105-3 offers excellent price-to-performance value through its reliability, durability, and quality. This robust universal pump has more than 10 operating modes and works with a finely adjustable delivery rate, which means a dosing accuracy from the milliliter to liter range.
| Conveying capacity | 0.08 ... 250 ml/min |
|---|---|
| Duty cycle | 50 % |
| Max. pressure | 2.5 bar |
| Suction height | 1.8 m |
| Operating voltage | 100 ... 230 VAC |
|---|---|
| Frequency | 50 / 60 Hz |
| Power consumption | 20 VA |
| Hose rupture detection | ja |
| Degree of protection | IP 65 |
| Control input voltage | 100 ... 230 VAC |
| External warning signal | ja |
| Saier RS485 Bus | ja |
