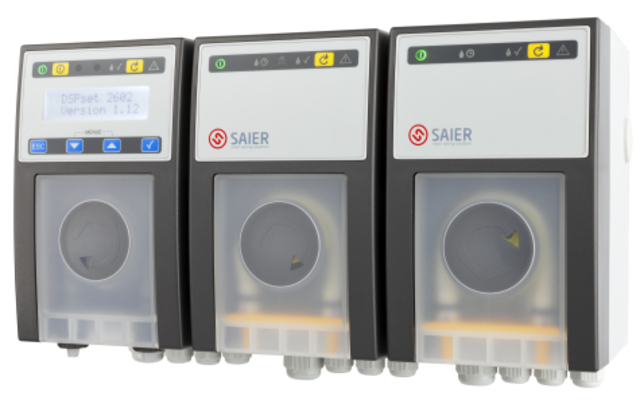

DSPset 2602
The Saier DSP Set 2602 is a modern central dosing unit for warewashing technologies. This compact dosing unit includes a detergent, rinse-aid, and additive dosing pump that can be configured directly on the unit or via the Saier user-friendly SSC software. Configurable dosing programs and remote monitoring and controlling solutions offer new, innovative opportunities for a wide range of applications. In addition, Saier conductivity sensors allow perfect control of the unit and pumps, ensuring highly accurate dosing.
| Rinse pump flow rate | 1.3 ... 33 ml/min |
|---|---|
| Flow rate cleaning pump | 1 ... 150 ml/min |
| Duty cycle | 50 %/h |
| Max. pressure rinse pump | 2.5 bar |
| Max. pressure of cleaning pump | 2 bar |
| Suction height | 1.8 m |
| Operating voltage | 230 V |
|---|---|
| Frequency | 50 / 60 Hz |
| Rinse pump power consumption | 20 VA |
| Power consumption of cleaning pump | 16 VA |
| Hose rupture detection | yes |
| Degree of protection | IP 65 |
| Control input voltage | 230 VAC |
| External warning signal | ja |
| Saier RS485 Bus | ja |
